ZLT P53 4G industrial router

  •        p53 xq.png

    Main function :
    4G LTE data transfer
    Frequency can be customized
    Industrial design  more stable
    2,4GWIFI
     adapt to harsh environment
    adapt to wide voltage
    4 pcs high gain antenna
    2LAN port
    serial port
    DTU
    Montior device running status
    watch dog design
    Automatic repair, remote wakeupUpgrade remotely
    web management

    Mian feature :
    4G frequency can be customized
    adapt to harsh environment
    adapt to wide voltage
    stable
    Automatic repair, remote wakeupSupport online  audit

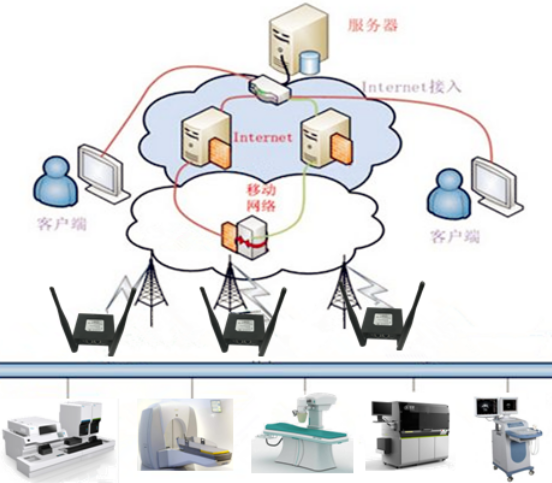

Scheme & Case

Technical specifications



Access technology
TD-LTE/FDD/WCDMA/TD-SCDMA/GGE(GSM/GPRS/EGPRS)
Frequency
GSM : 850/900/1800/1900
TD-SCDMA:Band 34/39
WCDMA : Band 1/2/5/8
TD-LTEBand 40/38/ 39/41
FDDBand 1/3/5/8
speed rate
CAT4  DL:150Mbps / UL:50Mbps
indicators
power indicators , signal indicators ,LAN indicators
software
web management
power
DC 2.0(12V,1A)
reset button
2个 LAN/RESET
antenna ability
for external antenna
SIM / USIMSupport SIM/USIM
configuraton upgrade
Unified network management, support local, platform firmware upgrade, configuration upgrade
software upgrade

Support local patch upgrade


working temperature
-20~50℃
storage temperature

-40~85℃

humidity
≤95%
SIZE
108mm*100.5mm*24mm
weight
about 337.5g
Security

Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding

speed control
Support uplink and downlink speed limit, port speed limit
WIFI speed
2.4GHz,802.11b/g/n
WIFI users
32
